FEATURES

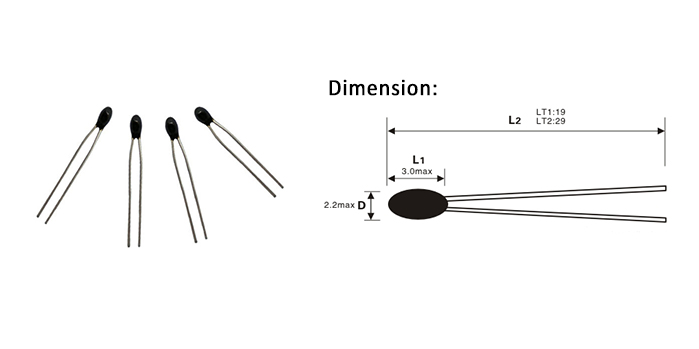

LT series of non-insulated lead type NTC thermistor is suitable for making high precision temperature sensor. NTC thermistor components with small size, thermal fast, high sensitivity etc. Exsense Electronics Technology Co., Ltd. provide you with the most professional NTC thermistors chip and NTC thermistor components technical services, you can through the mail, telephone, QQ to contact us.
1、Small size, Fast response, High sensitivity.
2、High accuracy tolerances to +/-0.1℃.
3、Excellent thermal cycle endurance.
4、High stability.
5、Operating ranges -50℃ ~ +125℃.
Electronic Parameter Specification
|

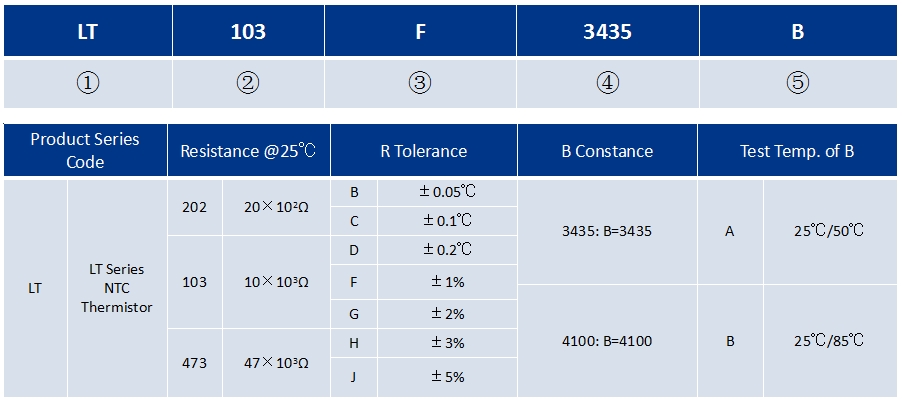

Part No.
|
R25℃
(KΩ)
|
B(K)
|
Rated Power @25℃（mW）
|
Dissipation Factor(δ) (mW/℃)
|
Thermal Time
Constant (S)
|
|
LT502□3274A
|
5.0
|
3274
|
10-15
|
2
|
≤10
|
|
LT502□3435B
|
5.0
|
3435
|
|
LT502□3470A
|
5.0
|
3470
|
|
LT502□3950A
|
5.0
|
3950
|
|
LT103□3274A
|
10.0
|
3274
|
|
LT103□3435B
|
10.0
|
3435
|
|
LT103□3470A
|
10.0
|
3470
|
|
LT103□3950A
|
10.0
|
3950
|
|
LT103□4100A
|
10.0
|
4100
|
|
LT153□3950A
|
15.0
|
3950
|
|
LT153□4100A
|
15.0
|
4100
|
|
LT203□3950A
|
20.0
|
3950
|
|
LT203□4100A
|
20.0
|
4100
|
|
LT403□3928A
|
40.27
|
3928
|
|
LT473□3950A
|
47.0
|
3950
|
|
LT473□4100A
|
47.0
|
4100
|
|
LT503□3950A
|
50.0
|
3950
|
|
LT503□4100A
|
50.0
|
4100
|
|
LT104□3950A
|
100
|
3950
|
|
LT104□4100A
|
100
|
4100
|
|
LT104□4400A
|
100
|
4400
|
◆The B-tolerance is ±1% when R--tolerance within ±3%, others are ±2%.
◆Special part number could be custom designed.
