FEATURES

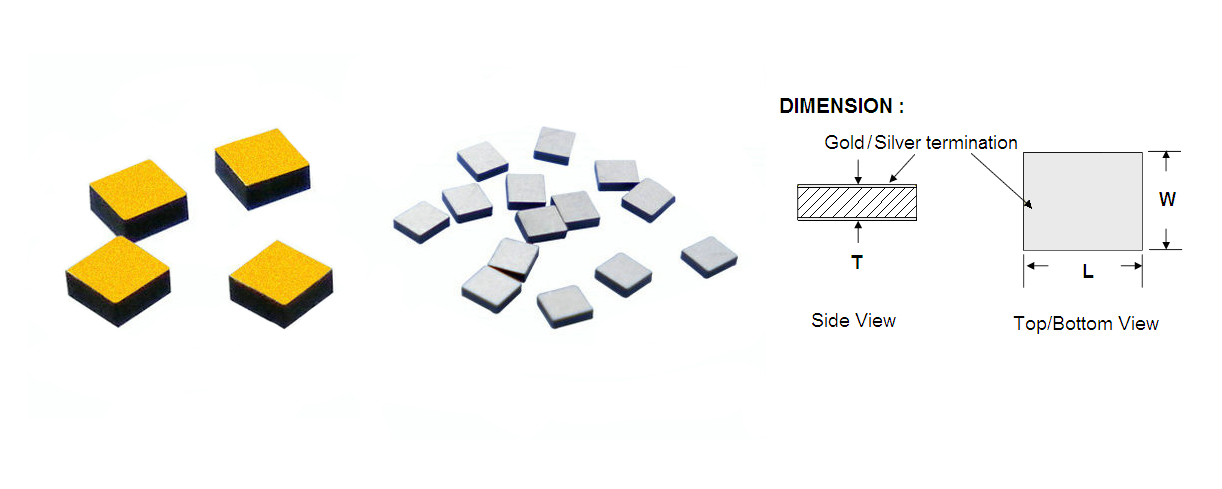

DT series NTC thermistor is the newest development in chip NTC thermistors. The miniature package is designed for hybrid applications where bonding wire or Au/Sn solder is used as the attachment method. The terminations on the top and bottom of the thermistor are gold (Au) plated for the ultimate in hybrid designs and construction.
1、Adopt gold electronide,higher realiabilty,gold/aluminum/silver wire bonding.
2、High accuracy,can reach ±0.3%，±1%，±3%.
3、High stability& reliabilty.
4、Small size,can be 0.3*0.3mm.
5、Fast response.
6、Customized sizes and parameters are avaliable.
APPLICATION
1、Bonding( infrared thermal reactor,IGBT,Thermal printer head,Integrate module,semiconductor module,power mould etc).
2、Hybrid designs and construction.
3、High Precision NTC Temperature sensor.

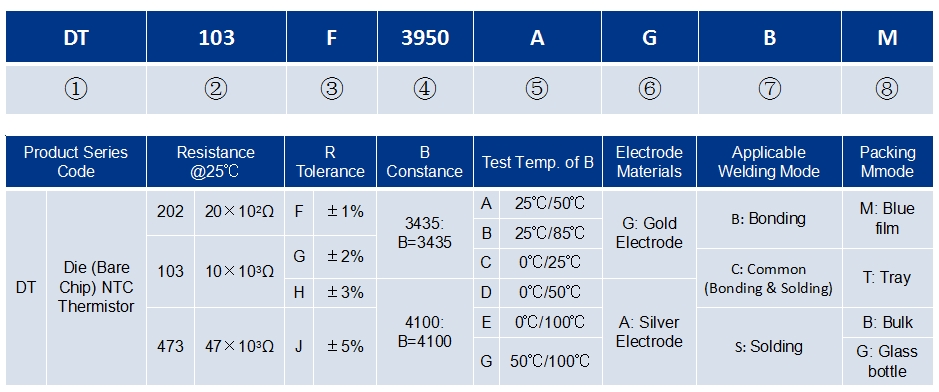

Part Number Identification
Electronic Parameter Specification
|
Part No.
|
R25℃
(KΩ)
|
B(K)
|
Rated Power @25℃（mW）
|
Dissipation Factor(δ)
(mW/℃)
|
Thermal Time
Constant (S)
|
|
DT102□3150A
|
1.0
|
3150
|
15
|
2.5
|
≤15
|
|
DT202□3150A
|
2.0
|
3150
|
|
DT502□3274A
|
5.0
|
3274
|
|
DT502□3435B
|
5.0
|
3435
|
|
DT502□3470A
|
5.0
|
3470
|
|
DT502□3950A
|
5.0
|
3950
|
|
DT103□3274A
|
10.0
|
3274
|
|
DT103□3435B
|
10.0
|
3435
|
|
DT103□3470A
|
10.0
|
3470
|
|
DT103□3950A
|
10.0
|
3950
|
|
DT103□4100A
|
10.0
|
4100
|
|
DT153□3950A
|
15.0
|
3950
|
|
DT153□4100A
|
15.0
|
4100
|
|
DT203□3950A
|
20.0
|
3950
|
|
DT203□4100A
|
20.0
|
4100
|
|
DT223□4200A
|
22.0
|
4200
|
|
DT333□3950A
|
33.0
|
3950
|
|
DT403□3928A
|
40.27
|
3928
|
|
DT473□3950A
|
47.0
|
3950
|
|
DT473□4100A
|
47.0
|
4100
|
|
DT503□3950A
|
50.0
|
3950
|
|
DT503□4100A
|
50.0
|
4100
|
|
DT104□3950A
|
100
|
3950
|
|
DT104□4100A
|
100
|
4100
|
|
DT104□4400A
|
100
|
4400
|
◆The B-tolerance is ±1% when R -- tolerance within ±3%, others are ±2%.
◆Special part number could be custom designed.
